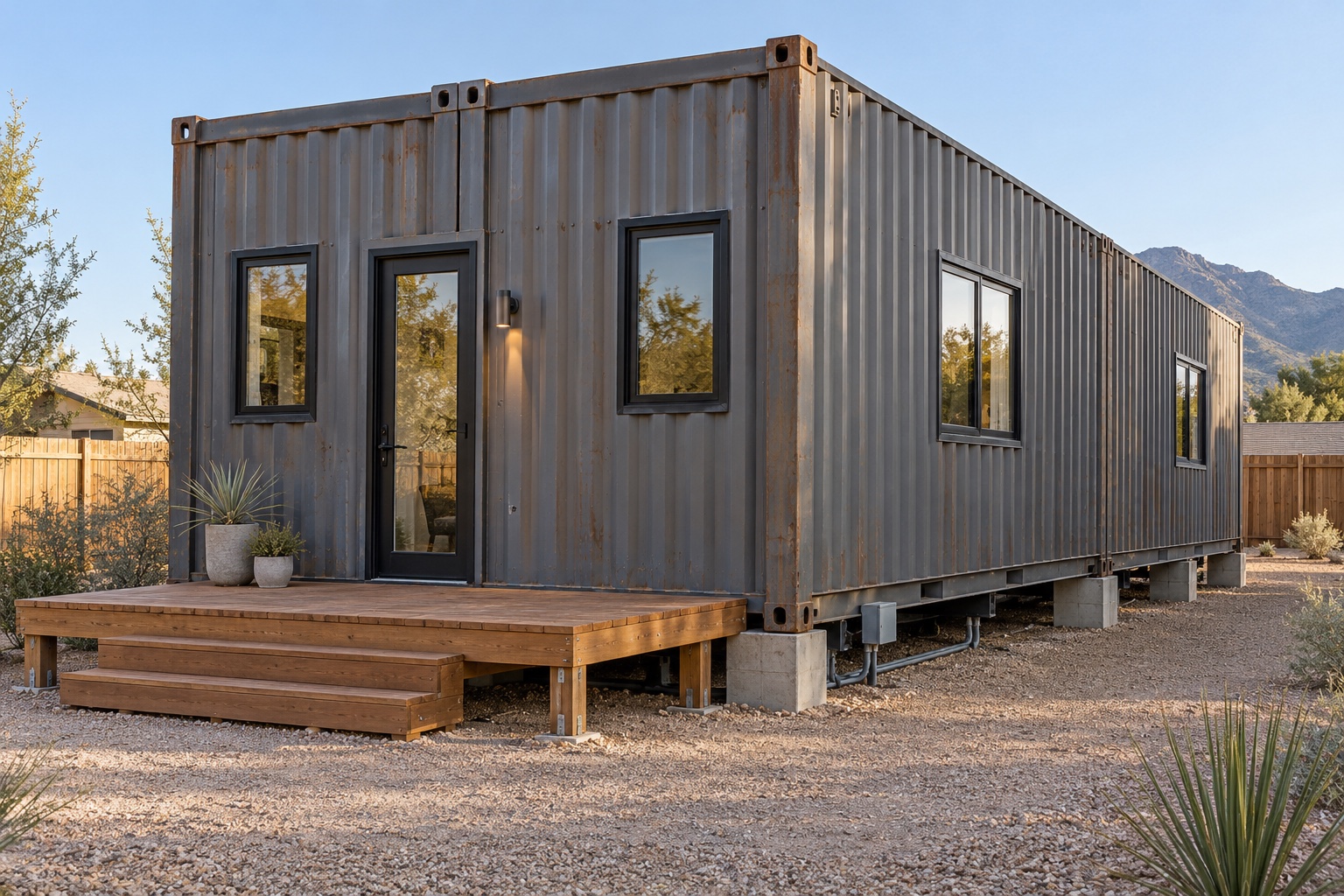

Photorealistic Courtyard 640 twin-container home with visible module seam and independent timber deck

Concept visualization

Container home · Twin module

Courtyard 640

Two joined high-cube containers create a practical two-bedroom home with visible transfer structure and generous shared space.

Indicative price from$94,000Before delivery, site work, permits, taxes and upgrades

Size: 640 sq ft
Bedrooms: 2
Bathrooms: 1
Footprint: 16′ × 40′

Get a project estimate

At a glance

Designed for practical daily life.

Home highlights

16 × 40-foot twin-module shell
Two private bedrooms
Independent entry deck
Full residential utility connections
Finish selections confirmed before build

Estimated completion

5–7 months

Factory build: 14–18 weeks
Planning + selections: 4–8 weeks
Delivery + set-up: 1–3 weeks

Typical guide after final design, approvals and production slot confirmation. Site, permits, transport distance and change requests can affect timing.

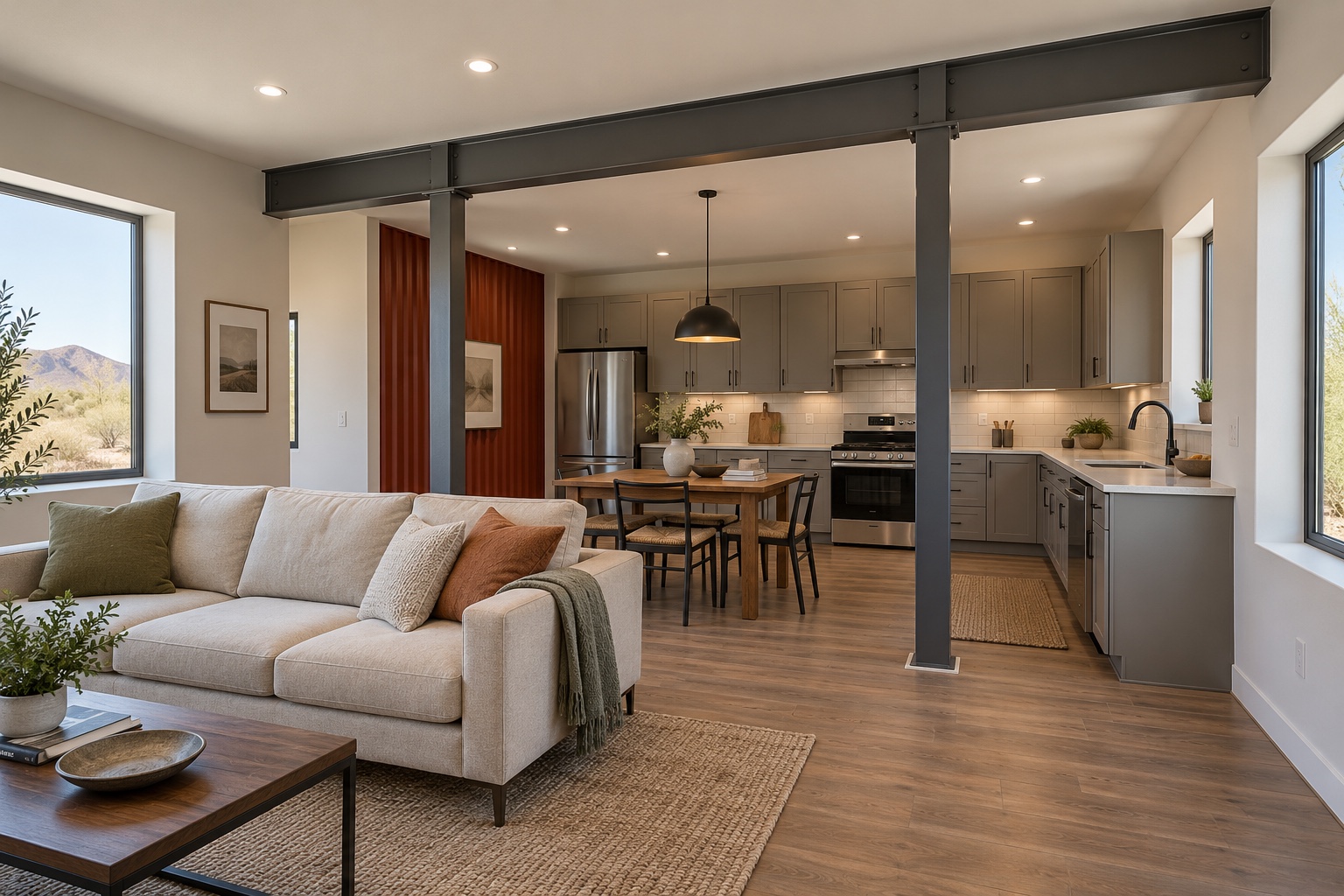

Photorealistic living, dining and kitchen space with visible steel transfer beam inside the Courtyard 640 — Living + kitchen · concept visualization

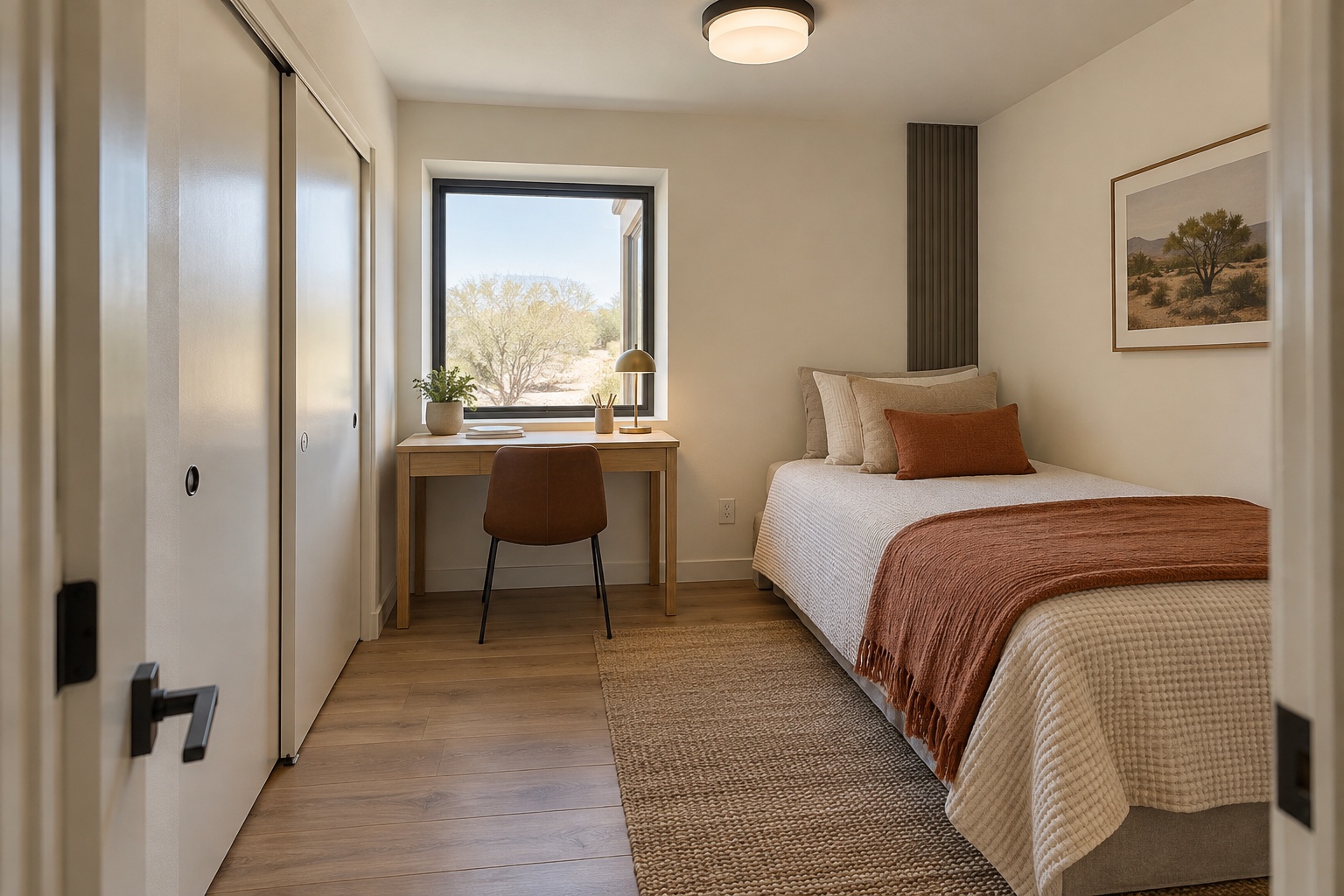

Second bedroom with twin bed, wardrobe and writing desk inside the Courtyard 640 container home — Second bedroom + desk · concept visualization

Financing examples

A clearer monthly picture.

Compare three illustrative terms based on this home’s starting price. We’ll confirm current lender options and project eligibility during your consultation.

10-year example$1,004/mo*

Home price: $94,000
Example deposit: $9,400
Illustrative APR: 7.5%

15-year example$784/mo*

Home price: $94,000
Example deposit: $9,400
Illustrative APR: 7.5%

20-year example$682/mo*

Home price: $94,000
Example deposit: $9,400
Illustrative APR: 7.5%

*Illustration only, not a loan offer or approval. Estimates assume 10% deposit and 7.5% APR on the base home price. Actual rates, fees, taxes, insurance, delivery, land and site work vary by borrower, lender and project.

House plan

Measured planning zones with clear schedules.

Start with the room dimensions, then match the D and W tags to the door and window schedules. F tags show diagrammatic furniture/fixture footprints only—not verified product fit or code clearance.

Architectural concept plan

Measured planning zones, openings + diagrammatic furniture

North ↑

Fit overview · switch to detail to read tags

Dimensioned concept plan—not for construction. Final engineering, code review, site conditions and manufacturer tolerances govern.

How to read this plan

Heavy outline = exterior wall
Fine line = interior partition
Arc = hinged swing; double line = surface slider
Double line = window opening
Dashed item = diagrammatic furniture or fixture footprint

Gross exterior footprint; room dimensions are planning-zone dimensions before final wall build-ups. Diagrammatic furniture and fixture footprints only—not a validated clearance, accessibility or product-fit plan. Final product selection and all operating/circulation clearances require project-specific design review.

Room schedule

R1Bedroom 1: 9′-7″ × 16′-0″
R2Living: 13′-7″ × 8′-10″
R3Kitchen / dining: 13′-7″ × 7′-2″
R4Full bath: 6′-5″ × 12′-6″
R5Bedroom hall: 6′-5″ × 3′-6″
R6Bedroom 2: 10′-5″ × 16′-0″

Door schedule

TagConnectsClear width

D1Exterior entry · Exterior → Living3′-0″

D2Interior hinged · Living → Bedroom 12′-8″

D3Surface-sliding bath door · Bedroom hall → Full bath2′-5″

D4Interior hinged · Bedroom hall → Bedroom 22′-8″

Open circulation

TagConnectsWidth

O1Cased opening · Living → Kitchen / dining4′-0″

O2Cased opening · Kitchen / dining → Bedroom hall3′-0″

Window schedule

TagType / roomWidth

W1Proposed sleeping-room window · egress subject to final specification · Bedroom 1 · north4′-0″

W2Operable daylight · Living · north5′-0″

W3Operable daylight · Kitchen / dining · south5′-0″

W4Proposed sleeping-room window · egress subject to final specification · Bedroom 2 · north4′-0″

W5Privacy awning · Full bath · north2′-6″

Diagrammatic furniture + fixture reference

TagItem / roomW × D

F1Queen bed · Bedroom 15′-0″ × 6′-8″

F2Wardrobe · Bedroom 14′-0″ × 2′-0″

F3Loveseat · Living5′-6″ × 3′-0″

F4Prep counter · Kitchen / dining3′-5″ × 2′-0″

F5Kitchen sink base · Kitchen / dining2′-6″ × 2′-0″

F6Range / cooktop · Kitchen / dining2′-6″ × 2′-2″

F7Apartment-size refrigerator · Kitchen / dining2′-1″ × 2′-2″

F8Dining table for two · Kitchen / dining3′-0″ × 3′-0″

F9Tub / shower · Full bath5′-0″ × 3′-0″

F10Toilet · Full bath1′-5″ × 2′-2″

F11Lavatory vanity · Full bath3′-0″ × 1′-7″

F12Queen bed · Bedroom 25′-0″ × 6′-8″

F13Wardrobe · Bedroom 24′-0″ × 2′-0″

Dimensions are reference footprints only. Confirm actual products, operating space, circulation and code clearances before ordering.

Specification

What the concept includes.

Structure: Reinforced high-cube ISO steel modules on site-engineered concrete piers
Envelope: Closed-cell insulation and interior service wall; thermal breaks at steel
Exterior: Refinished corrugated steel with framed, flashed punched openings
Systems: Ductless or compact ducted heat pump; electric water heater
Interior: Painted drywall, resilient plank flooring and exposed steel accents
