Mobile home · Compact single-section
Timber 352

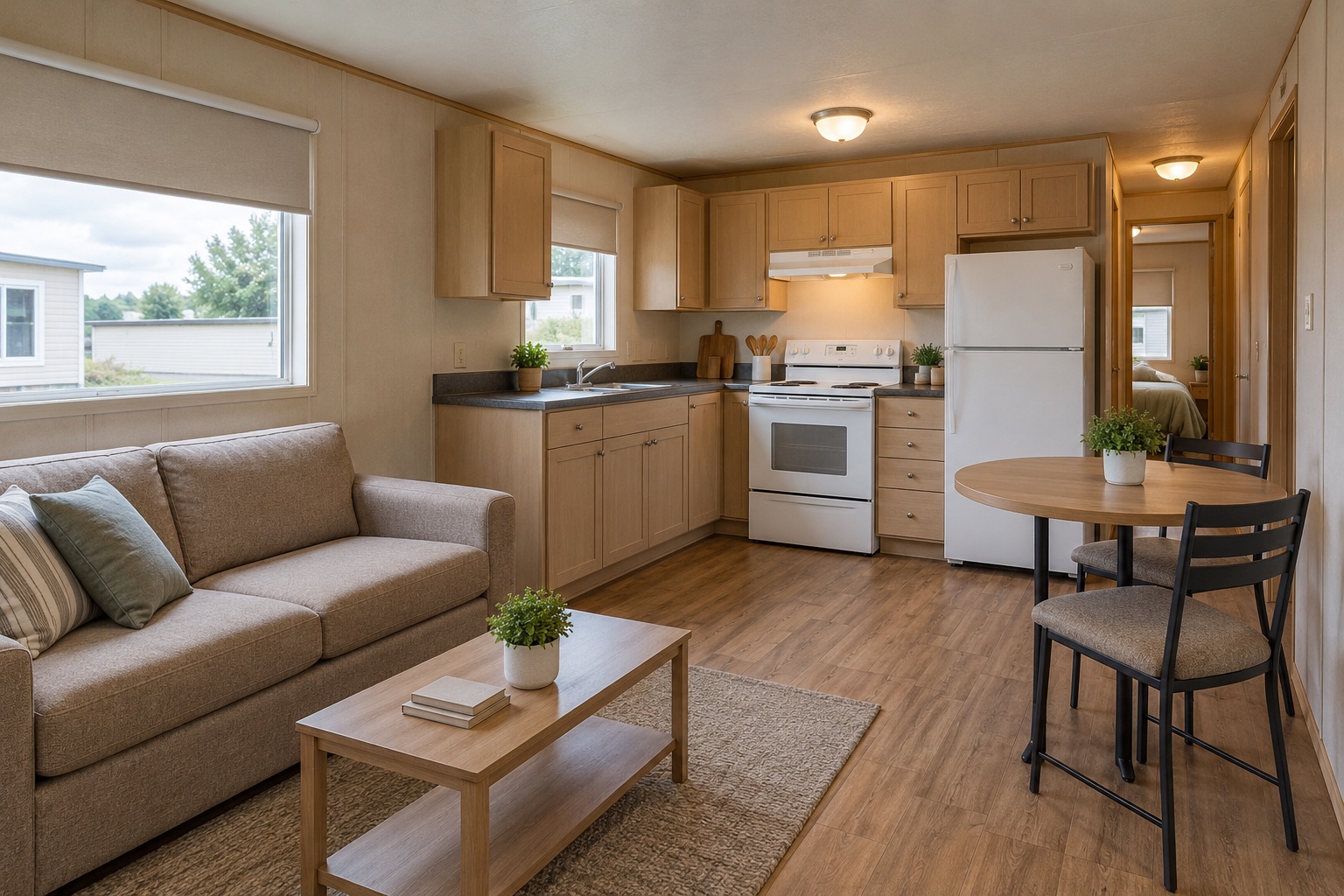

A warm, straightforward one-bedroom home with an L-shaped working kitchen and a comfortable front lounge for everyday use.
Indicative price from$35,800Before delivery, site work, permits, taxes and upgrades
- Size
- 352 sq ft
- Bedrooms
- 1
- Bathrooms
- 1
- Footprint
- 11′ × 32′
At a glance
Designed for practical daily life.
Home highlights
- 11 × 32-foot single section
- L-shaped working kitchen
- Private rear bedroom
- Full residential utility connections
- Finish selections confirmed before build
Estimated completion
4–6 months- Factory build
- 10–14 weeks
- Planning + selections
- 4–8 weeks
- Delivery + set-up
- 1–3 weeks
Typical guide after final design, approvals and production slot confirmation. Site, permits, transport distance and change requests can affect timing.
Financing examples
A clearer monthly picture.
Compare three illustrative terms based on this home’s starting price. We’ll confirm current lender options and project eligibility during your consultation.
- Home price
- $35,800
- Example deposit
- $3,600
- Illustrative APR
- 7.5%
- Home price
- $35,800
- Example deposit
- $3,600
- Illustrative APR
- 7.5%
*Illustration only, not a loan offer or approval. Estimates assume 10% deposit and 7.5% APR on the base home price. Actual rates, fees, taxes, insurance, delivery, land and site work vary by borrower, lender and project.
House plan
Measured planning zones with clear schedules.
Start with the room dimensions, then match the D and W tags to the door and window schedules. F tags show diagrammatic furniture/fixture footprints only—not verified product fit or code clearance.
Architectural concept plan
Measured planning zones, openings + diagrammatic furnitureFit overview · switch to detail to read tags
Dimensioned concept plan—not for construction. Final engineering, code review, site conditions and manufacturer tolerances govern.
How to read this plan
- Heavy outline = exterior wall
- Fine line = interior partition
- Arc = hinged swing; double line = surface slider
- Double line = window opening
- Dashed item = diagrammatic furniture or fixture footprint
Gross exterior footprint; room dimensions are planning-zone dimensions before final wall build-ups. Diagrammatic furniture and fixture footprints only—not a validated clearance, accessibility or product-fit plan. Final product selection and all operating/circulation clearances require project-specific design review.
Room schedule
- R1Living
- 8′-7″ × 11′-0″
- R2Kitchen / dining
- 7′-5″ × 11′-0″
- R3Full bath
- 6′-5″ × 8′-0″
- R4Bedroom hall
- 6′-5″ × 3′-0″
- R5Bedroom
- 9′-7″ × 11′-0″
Door schedule
TagConnectsClear width
D1Exterior entry · Exterior → Living3′-0″
D2Surface-sliding bath door · Bedroom hall → Full bath2′-5″
D3Interior hinged · Bedroom hall → Bedroom2′-6″
Open circulation
TagConnectsWidth
O1Cased opening · Living → Kitchen / dining4′-0″
O2Cased opening · Kitchen / dining → Bedroom hall2′-6″
Window schedule
TagType / roomWidth
W1Operable daylight · Living · south5′-0″
W2Operable daylight · Kitchen / dining · north5′-0″
W3Proposed sleeping-room window · egress subject to final specification · Bedroom · north4′-0″
W4Privacy awning · Full bath · north2′-6″
Diagrammatic furniture + fixture reference
TagItem / roomW × D
F1Loveseat · Living5′-6″ × 3′-0″
F2Prep counter · Kitchen / dining2′-6″ × 2′-0″
F3Kitchen sink base · Kitchen / dining2′-6″ × 2′-0″
F4Range / cooktop · Kitchen / dining2′-6″ × 2′-2″
F5Apartment-size refrigerator · Kitchen / dining2′-1″ × 2′-2″
F6Dining table for two · Kitchen / dining3′-0″ × 3′-0″
F7Shower · Full bath3′-0″ × 3′-0″
F8Toilet · Full bath1′-5″ × 2′-2″
F9Lavatory vanity · Full bath3′-0″ × 1′-7″
F10Queen bed · Bedroom5′-0″ × 6′-8″
F11Wardrobe · Bedroom4′-0″ × 2′-0″
Dimensions are reference footprints only. Confirm actual products, operating space, circulation and code clearances before ordering.
Specification
What the concept includes.
- Structure
- Transportable steel chassis; 2×4 wood-framed walls
- Envelope
- R-13 walls / R-19 floor and roof concept allowance
- Exterior
- Low-maintenance lap siding; asphalt-shingle roof
- Systems
- Compact heat-pump mini-split; electric water heater
- Interior
- Sheetrock walls, LVP flooring and laminate worktops
