Mobile home · Double-wide
Landmark 1792
The largest manufactured-home plan adds a fourth bedroom, flexible family space and a substantial but restrained porch.
Indicative price from$219,000+Before delivery, site work, permits, taxes and upgrades
- Size
- 1,792 sq ft
- Bedrooms
- 4
- Bathrooms
- 2
- Footprint
- 28′ × 64′
At a glance
Designed for practical daily life.
Home highlights
- 28 × 64-foot double section
- Four private bedrooms
- Large open family living zone
- Full residential utility connections
- Finish selections confirmed before build
Estimated completion
7–10 months- Factory build
- 22–28 weeks
- Planning + selections
- 4–8 weeks
- Delivery + set-up
- 1–3 weeks
Typical guide after final design, approvals and production slot confirmation. Site, permits, transport distance and change requests can affect timing.
Financing examples
A clearer monthly picture.
Compare three illustrative terms based on this home’s starting price. We’ll confirm current lender options and project eligibility during your consultation.
- Home price
- $219,000+
- Example deposit
- $21,900
- Illustrative APR
- 7.5%
- Home price
- $219,000+
- Example deposit
- $21,900
- Illustrative APR
- 7.5%
*Illustration only, not a loan offer or approval. Estimates assume 10% deposit and 7.5% APR on the base home price. Actual rates, fees, taxes, insurance, delivery, land and site work vary by borrower, lender and project.
House plan
Measured planning zones with clear schedules.
Start with the room dimensions, then match the D and W tags to the door and window schedules. F tags show diagrammatic furniture/fixture footprints only—not verified product fit or code clearance.
Architectural concept plan
Measured planning zones, openings + diagrammatic furnitureFit overview · switch to detail to read tags
Dimensioned concept plan—not for construction. Final engineering, code review, site conditions and manufacturer tolerances govern.
How to read this plan
- Heavy outline = exterior wall
- Fine line = interior partition
- Arc = hinged swing; double line = surface slider
- Double line = window opening
- Dashed item = diagrammatic furniture or fixture footprint
Gross exterior footprint; room dimensions are planning-zone dimensions before final wall build-ups. Diagrammatic furniture and fixture footprints only—not a validated clearance, accessibility or product-fit plan. Final product selection and all operating/circulation clearances require project-specific design review.
Room schedule

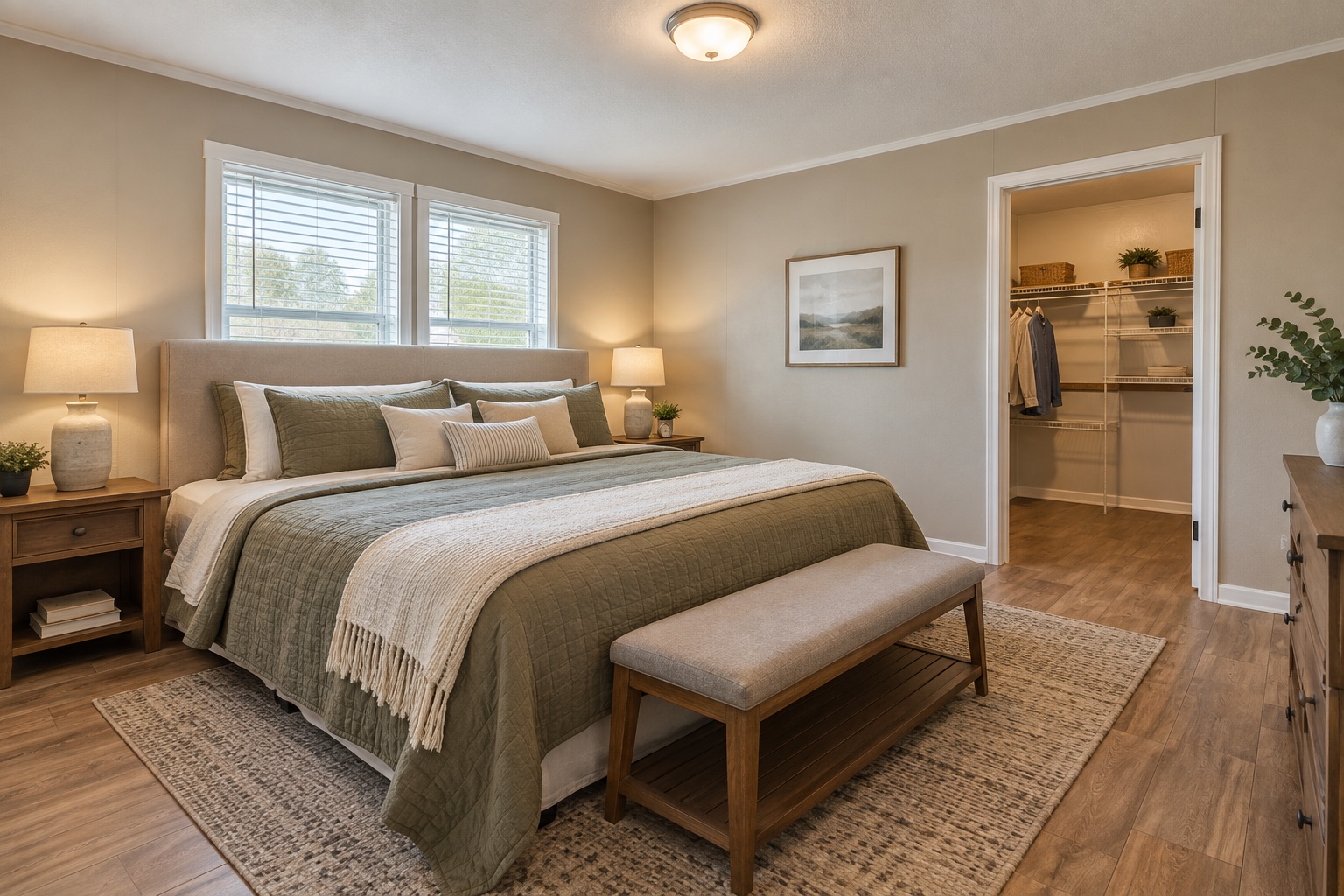

- R1Primary bedroom
- 10′-11″ × 28′-0″
- R2Primary bath
- 5′-1″ × 8′-5″
- R3Dressing / wardrobe
- 5′-1″ × 15′-7″
- R4Primary hall
- 5′-1″ × 4′-0″

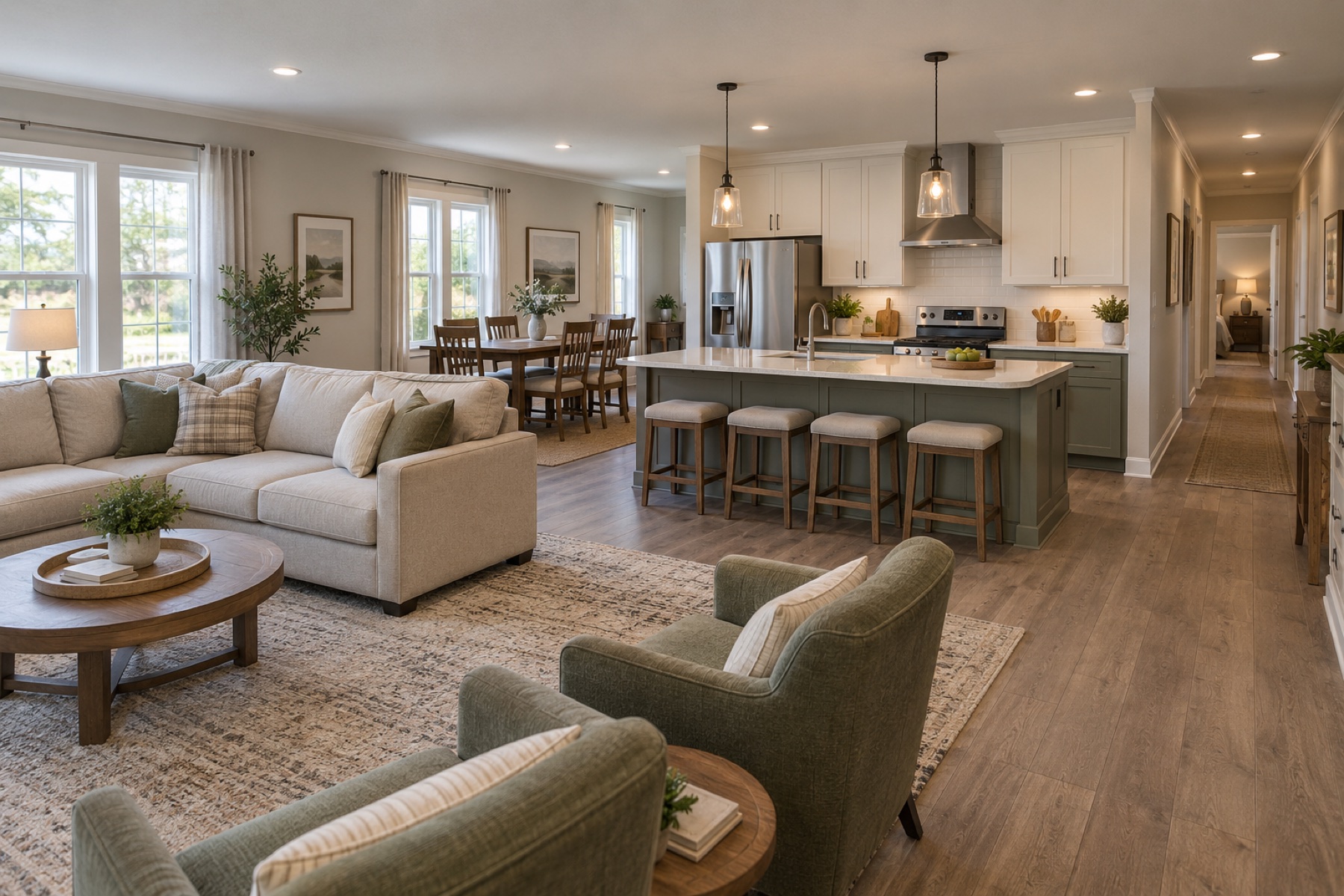

- R5Family living
- 11′-6″ × 28′-0″
- R6Kitchen / dining
- 9′-7″ × 28′-0″
- R7Bath 2
- 4′-10″ × 24′-0″
- R8Bedroom 2
- 7′-5″ × 24′-0″
- R9Bedroom 3
- 7′-5″ × 24′-0″
- R10Bedroom 4
- 7′-4″ × 24′-0″
- R11Bedroom hall
- 26′-11″ × 4′-0″
Door schedule
TagConnectsClear width
D1Exterior entry · Exterior → Family living3′-0″
D2Surface-sliding bath door · Bedroom hall → Bath 22′-5″
D3Interior hinged · Bedroom hall → Bedroom 22′-8″
D4Interior hinged · Bedroom hall → Bedroom 32′-8″
D5Interior hinged · Bedroom hall → Bedroom 42′-8″
D6Surface-sliding bath door · Primary bedroom → Primary bath2′-8″
D7Interior hinged · Primary bedroom → Dressing / wardrobe2′-5″
D8Interior hinged · Primary bedroom → Primary hall2′-8″
Open circulation
TagConnectsWidth
O1Cased opening · Kitchen / dining → Bedroom hall3′-6″
O2Cased opening · Primary hall → Family living3′-6″
O3Cased opening · Family living → Kitchen / dining4′-0″
Window schedule
TagType / roomWidth
W1Proposed sleeping-room window · egress subject to final specification · Primary bedroom · north4′-0″
W2Operable daylight · Family living · south5′-0″
W3Operable daylight · Kitchen / dining · north5′-0″
W4Proposed sleeping-room window · egress subject to final specification · Bedroom 2 · north4′-0″
W5Proposed sleeping-room window · egress subject to final specification · Bedroom 3 · north4′-0″
W6Proposed sleeping-room window · egress subject to final specification · Bedroom 4 · north4′-0″
W7Privacy awning · Primary bath · north2′-6″
W8Privacy awning · Bath 2 · north2′-6″
Diagrammatic furniture + fixture reference
TagItem / roomW × D
F1Queen bed · Primary bedroom5′-0″ × 6′-8″
F2Wardrobe · Primary bedroom4′-0″ × 2′-0″
F3Shower · Primary bath3′-0″ × 3′-0″
F4Toilet · Primary bath1′-5″ × 2′-2″
F5Lavatory vanity · Primary bath3′-0″ × 1′-7″
F6Wardrobe run · Dressing / wardrobe4′-1″ × 2′-0″
F7Three-seat sofa · Family living7′-0″ × 3′-0″
F8Prep counter · Kitchen / dining2′-6″ × 2′-0″
F9Kitchen sink base · Kitchen / dining2′-6″ × 2′-0″
F10Range / cooktop · Kitchen / dining2′-6″ × 2′-2″
F11Apartment-size refrigerator · Kitchen / dining2′-1″ × 2′-2″
F12Dining table for four · Kitchen / dining5′-0″ × 3′-0″
F13Tub / shower · Bath 24′-4″ × 3′-0″
F14Toilet · Bath 21′-5″ × 2′-2″
F15Lavatory vanity · Bath 23′-0″ × 1′-7″
F16Full bed · Bedroom 24′-6″ × 6′-4″
F17Wardrobe · Bedroom 24′-0″ × 2′-0″
F18Full bed · Bedroom 34′-6″ × 6′-4″
F19Wardrobe · Bedroom 34′-0″ × 2′-0″
F20Full bed · Bedroom 44′-6″ × 6′-4″
F21Wardrobe · Bedroom 44′-0″ × 2′-0″
Dimensions are reference footprints only. Confirm actual products, operating space, circulation and code clearances before ordering.
Specification
What the concept includes.
- Structure
- Two HUD-code sections joined on a prepared foundation
- Envelope
- Insulated exterior walls with sealed marriage line
- Exterior
- Engineered-lap siding; architectural-shingle roof
- Systems
- Ducted heat pump; full utility and laundry connections
- Interior
- Drywall, resilient plank flooring and family-size cabinetry
