Two bedroom
Redbud 720
An easy two-bedroom cottage with a comfortable porch, proper utility storage and a simple room-by-room layout.
Indicative price from$118,000Before delivery, site work, permits, taxes and upgrades
- Size
- 720 sq ft
- Bedrooms
- 2
- Bathrooms
- 1
- Footprint
- 20′ × 36′
At a glance
Designed for practical daily life.
Home highlights
- Two private bedrooms
- Dedicated utility storage
- Seven-foot covered porch
- Full residential utility connections
- Finish selections confirmed before build
Estimated completion
5–7 months- Factory build
- 14–18 weeks
- Planning + selections
- 4–8 weeks
- Delivery + set-up
- 1–3 weeks
Typical guide after final design, approvals and production slot confirmation. Site, permits, transport distance and change requests can affect timing.
Financing examples
A clearer monthly picture.
Compare three illustrative terms based on this home’s starting price. We’ll confirm current lender options and project eligibility during your consultation.
- Home price
- $118,000
- Example deposit
- $11,800
- Illustrative APR
- 7.5%
- Home price
- $118,000
- Example deposit
- $11,800
- Illustrative APR
- 7.5%
*Illustration only, not a loan offer or approval. Estimates assume 10% deposit and 7.5% APR on the base home price. Actual rates, fees, taxes, insurance, delivery, land and site work vary by borrower, lender and project.
House plan
Measured planning zones with clear schedules.
Start with the room dimensions, then match the D and W tags to the door and window schedules. F tags show diagrammatic furniture/fixture footprints only—not verified product fit or code clearance.
Architectural concept plan
Measured planning zones, openings + diagrammatic furnitureFit overview · switch to detail to read tags
Dimensioned concept plan—not for construction. Final engineering, code review, site conditions and manufacturer tolerances govern.
How to read this plan
- Heavy outline = exterior wall
- Fine line = interior partition
- Arc = hinged swing; double line = surface slider
- Double line = window opening
- Dashed item = diagrammatic furniture or fixture footprint
Gross exterior footprint; room dimensions are planning-zone dimensions before final wall build-ups. Diagrammatic furniture and fixture footprints only—not a validated clearance, accessibility or product-fit plan. Final product selection and all operating/circulation clearances require project-specific design review.
Room schedule
- R1Bedroom 1
- 8′-7″ × 20′-0″

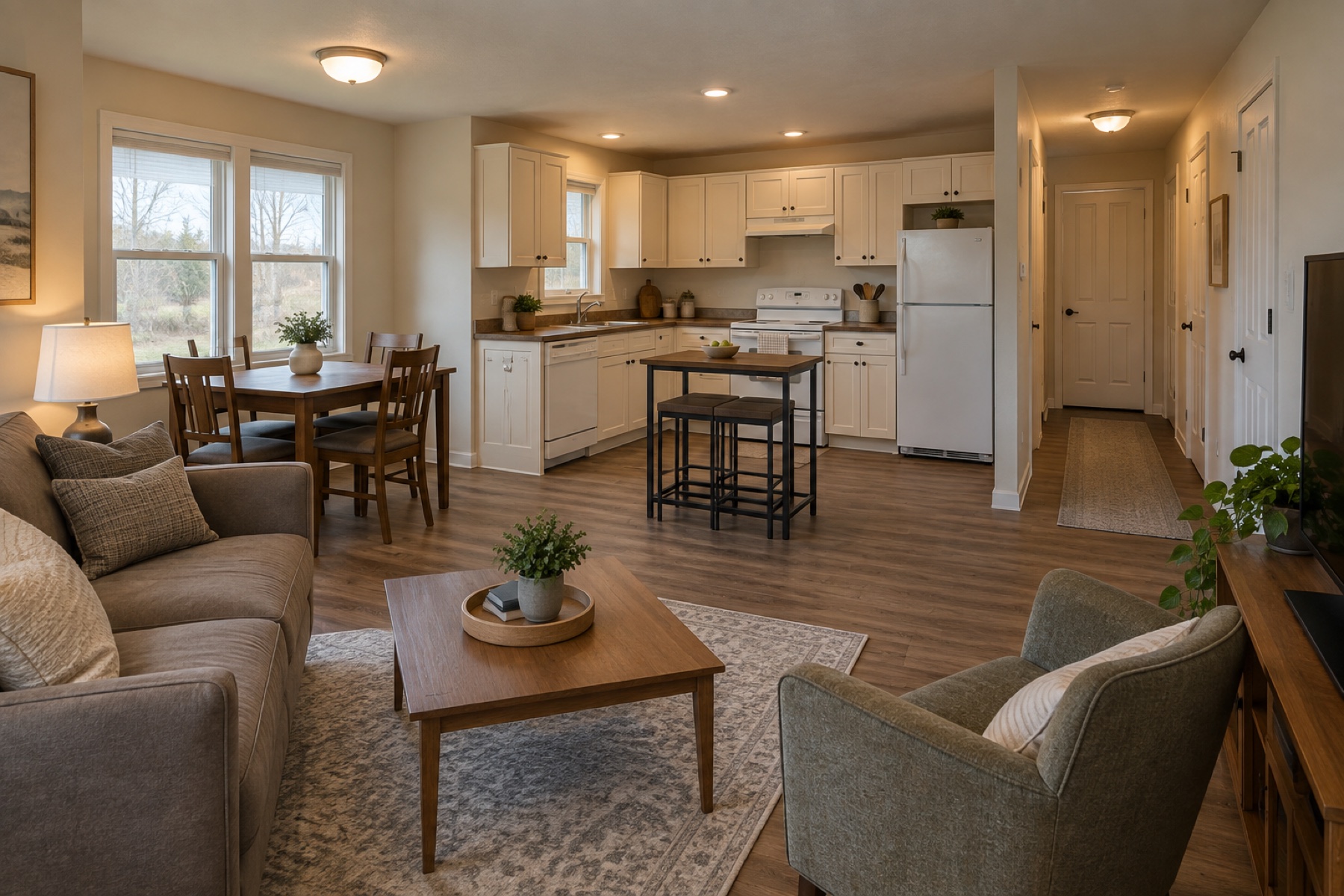

- R2Living
- 12′-2″ × 11′-0″
- R3Kitchen / dining
- 12′-2″ × 9′-0″

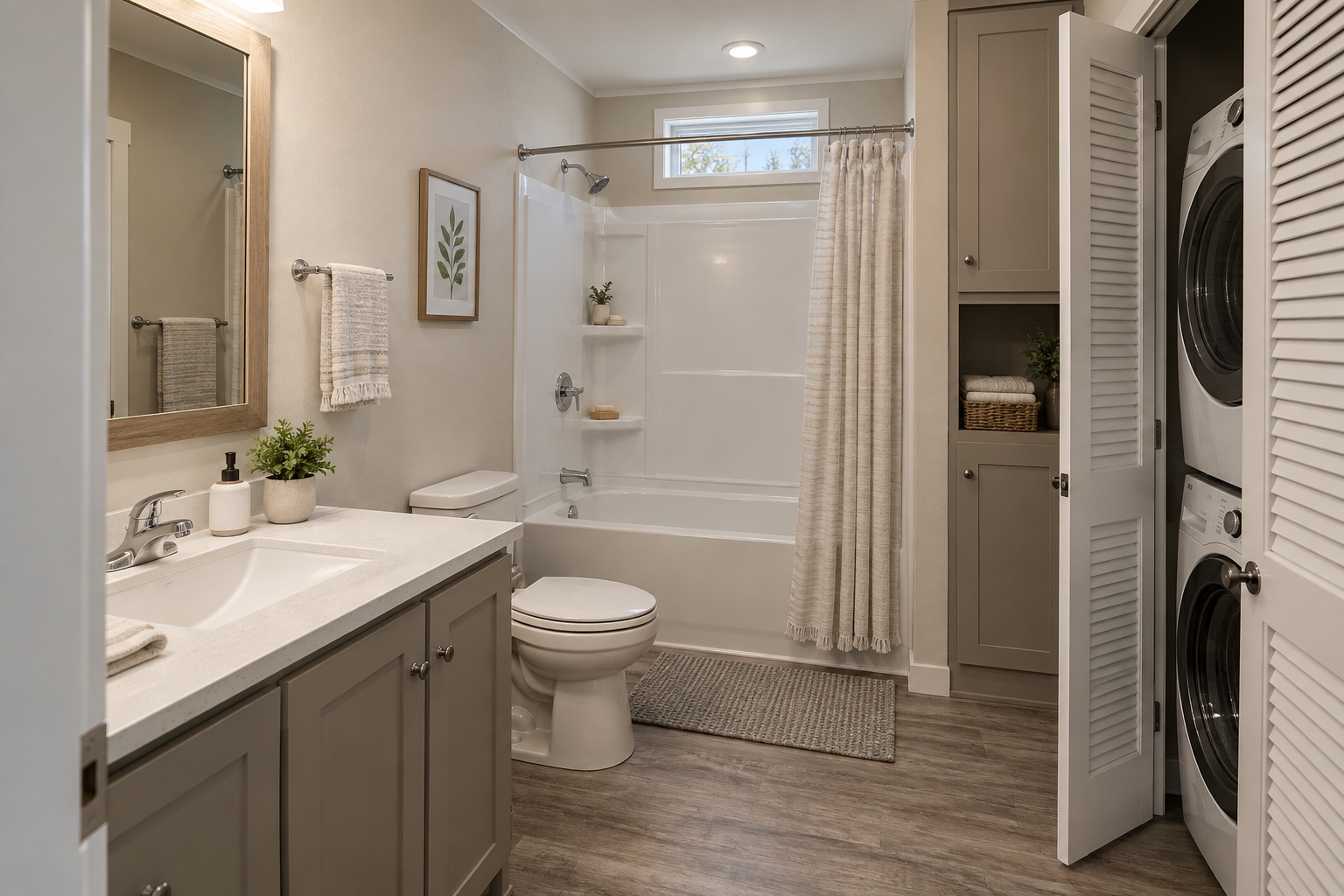

- R4Full bath
- 5′-10″ × 16′-6″
- R5Bedroom hall
- 5′-10″ × 3′-6″
- R6Bedroom 2
- 9′-5″ × 20′-0″
Door schedule
TagConnectsClear width
D1Exterior entry · Exterior → Living3′-0″
D2Interior hinged · Living → Bedroom 12′-8″
D3Surface-sliding bath door · Bedroom hall → Full bath2′-5″
D4Interior hinged · Bedroom hall → Bedroom 22′-8″
Open circulation
TagConnectsWidth
O1Cased opening · Living → Kitchen / dining4′-0″
O2Cased opening · Kitchen / dining → Bedroom hall3′-0″
Window schedule
TagType / roomWidth
W1Proposed sleeping-room window · egress subject to final specification · Bedroom 1 · north4′-0″
W2Operable daylight · Living · north5′-0″
W3Operable daylight · Kitchen / dining · south5′-0″
W4Proposed sleeping-room window · egress subject to final specification · Bedroom 2 · north4′-0″
W5Privacy awning · Full bath · north2′-6″
Diagrammatic furniture + fixture reference
TagItem / roomW × D
F1Full bed · Bedroom 14′-6″ × 6′-4″
F2Wardrobe · Bedroom 14′-0″ × 2′-0″
F3Three-seat sofa · Living7′-0″ × 3′-0″
F4Prep counter · Kitchen / dining3′-1″ × 2′-0″
F5Kitchen sink base · Kitchen / dining2′-6″ × 2′-0″
F6Range / cooktop · Kitchen / dining2′-6″ × 2′-2″
F7Apartment-size refrigerator · Kitchen / dining2′-1″ × 2′-2″
F8Dining table for four · Kitchen / dining5′-0″ × 3′-0″
F9Tub / shower · Full bath5′-0″ × 3′-0″
F10Toilet · Full bath1′-5″ × 2′-2″
F11Lavatory vanity · Full bath3′-0″ × 1′-7″
F12Queen bed · Bedroom 25′-0″ × 6′-8″
F13Wardrobe · Bedroom 24′-0″ × 2′-0″
Dimensions are reference footprints only. Confirm actual products, operating space, circulation and code clearances before ordering.
Specification
What the concept includes.
- Structure
- Wood floor cassette on piers or prepared permanent base
- Envelope
- 2×6 exterior walls with insulated roof assembly
- Exterior
- Engineered siding; architectural-shingle roof
- Systems
- High-efficiency heat pump; concealed laundry connections
- Interior
- Painted drywall, LVP flooring and plywood-core cabinetry
