Realistic concept of the Grandview 1680 four-bedroom modular home on a rural Louisiana homesite

Concept visualization

Premium modular home

Grandview 1680

The roomiest plan in the collection adds a fourth bedroom, flexible family space and an upgraded full-length porch.

Indicative price from$319,000+Before delivery, site work, permits, taxes and upgrades

Size: 1,680 sq ft
Bedrooms: 4
Bathrooms: 2.5
Footprint: 35′ × 48′

Get a project estimate

At a glance

Designed for practical daily life.

Home highlights

Four private bedrooms
Two and a half bathrooms
Full-length covered porch
Full residential utility connections
Finish selections confirmed before build

Estimated completion

7–10 months

Factory build: 22–28 weeks
Planning + selections: 4–8 weeks
Delivery + set-up: 1–3 weeks

Typical guide after final design, approvals and production slot confirmation. Site, permits, transport distance and change requests can affect timing.

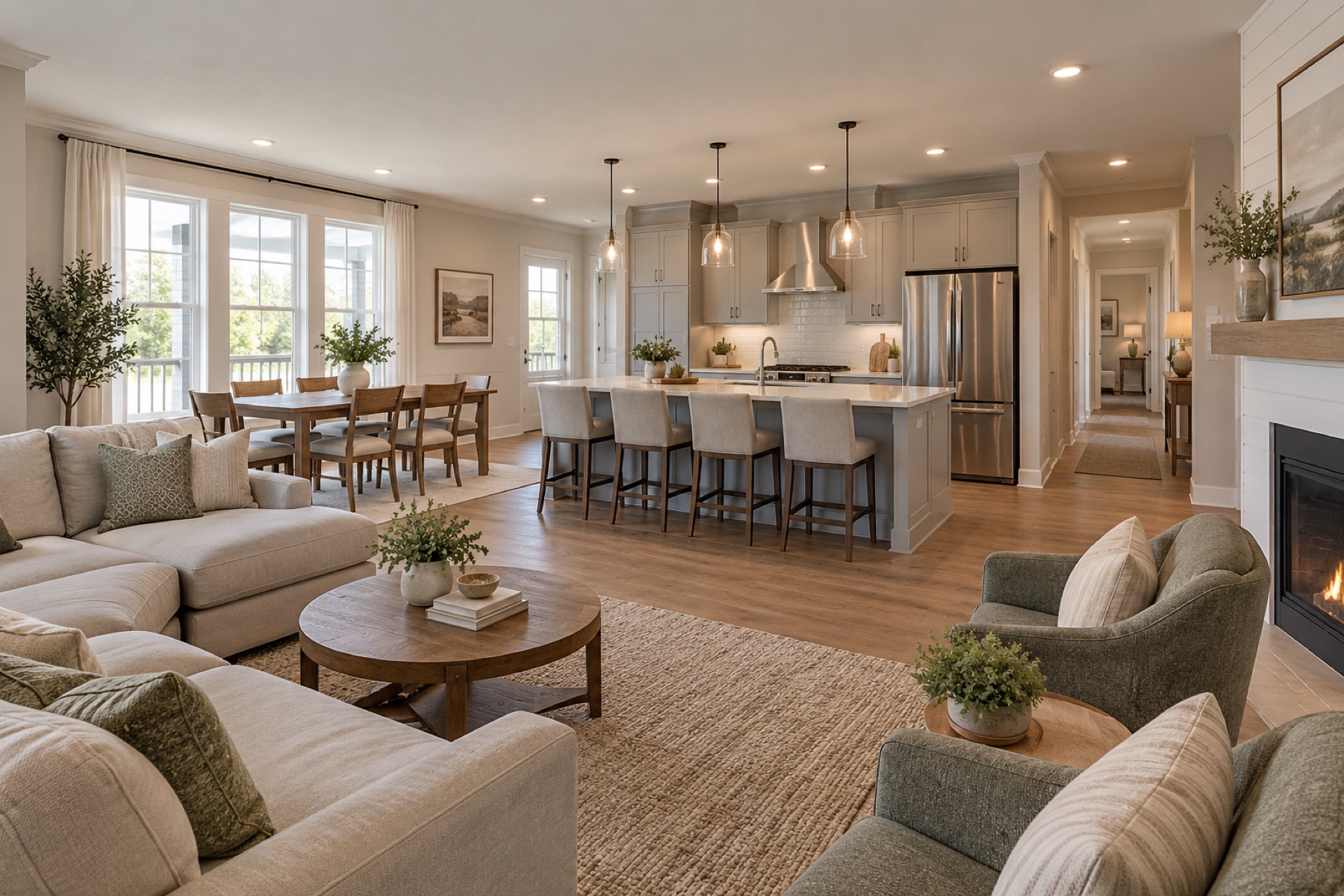

Realistic premium living, dining and kitchen space inside the Grandview 1680 modular family home — Living + kitchen · concept visualization

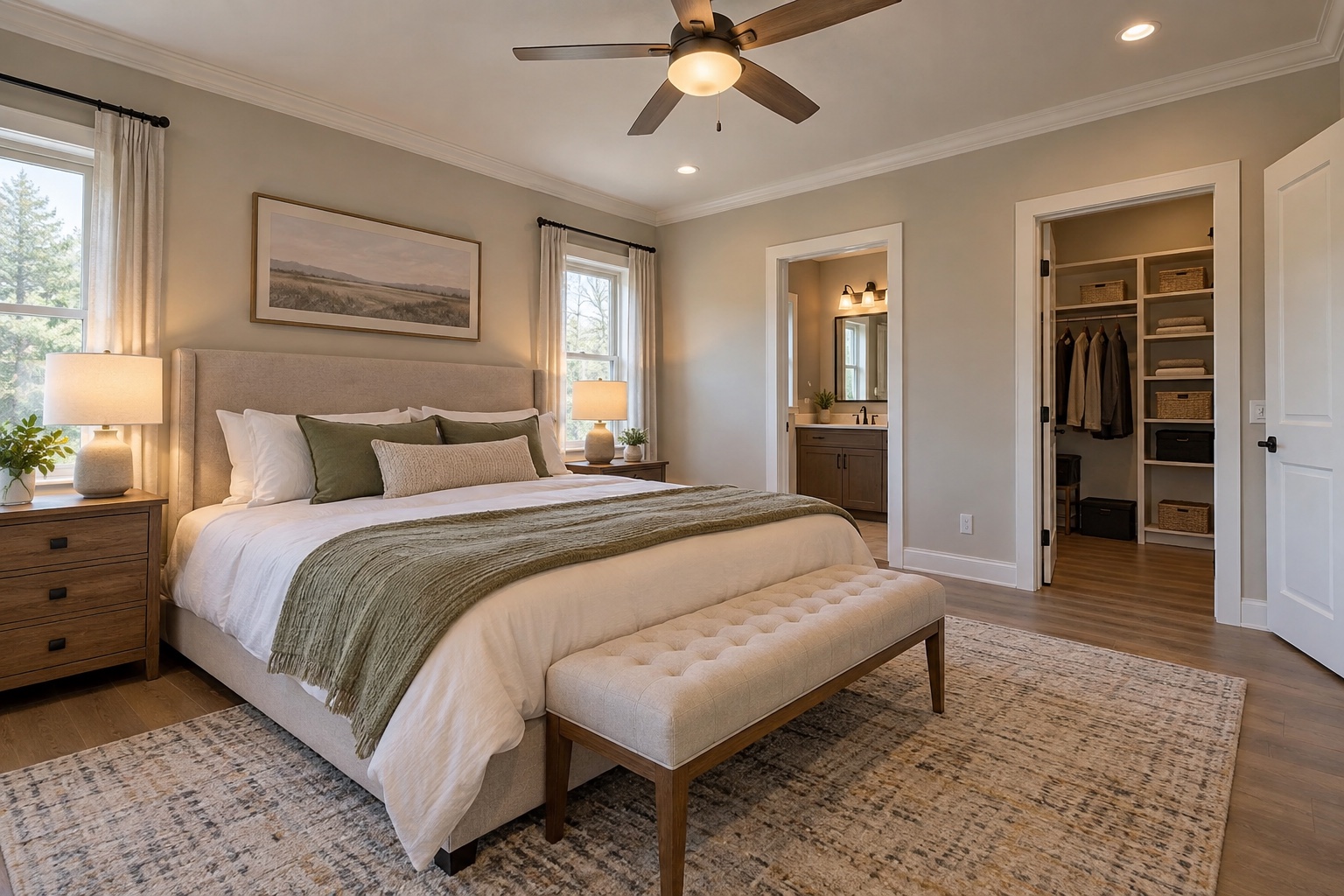

Generous primary suite with ensuite doorway and walk-in closet inside the Grandview 1680 — Primary suite + dressing · concept visualization

Financing examples

A clearer monthly picture.

Compare three illustrative terms based on this home’s starting price. We’ll confirm current lender options and project eligibility during your consultation.

10-year example$3,408/mo*

Home price: $319,000+
Example deposit: $31,900
Illustrative APR: 7.5%

15-year example$2,661/mo*

Home price: $319,000+
Example deposit: $31,900
Illustrative APR: 7.5%

20-year example$2,313/mo*

Home price: $319,000+
Example deposit: $31,900
Illustrative APR: 7.5%

*Illustration only, not a loan offer or approval. Estimates assume 10% deposit and 7.5% APR on the base home price. Actual rates, fees, taxes, insurance, delivery, land and site work vary by borrower, lender and project.

House plan

Measured planning zones with clear schedules.

Start with the room dimensions, then match the D and W tags to the door and window schedules. F tags show diagrammatic furniture/fixture footprints only—not verified product fit or code clearance.

Architectural concept plan

Measured planning zones, openings + diagrammatic furniture

North ↑

Fit overview · switch to detail to read tags

Dimensioned concept plan—not for construction. Final engineering, code review, site conditions and manufacturer tolerances govern.

How to read this plan

Heavy outline = exterior wall
Fine line = interior partition
Arc = hinged swing; double line = surface slider
Double line = window opening
Dashed item = diagrammatic furniture or fixture footprint

Gross exterior footprint; room dimensions are planning-zone dimensions before final wall build-ups. Diagrammatic furniture and fixture footprints only—not a validated clearance, accessibility or product-fit plan. Final product selection and all operating/circulation clearances require project-specific design review.

Room schedule

R1Primary bedroom: 9′-1″ × 35′-0″
R2Primary bath: 4′-10″ × 10′-0″
R3Dressing / wardrobe: 4′-10″ × 14′-0″
R4Powder room: 4′-10″ × 7′-0″
R5Primary hall: 4′-10″ × 4′-0″
R6Family living: 10′-1″ × 35′-0″
R7Kitchen / dining: 8′-2″ × 35′-0″
R8Bedroom vestibule: 3′-0″ × 35′-0″
R9Bath 2: 12′-10″ × 8′-0″
R10Bedroom 2: 12′-10″ × 9′-0″
R11Bedroom 3: 12′-10″ × 9′-0″
R12Bedroom 4: 12′-10″ × 9′-0″

Door schedule

TagConnectsClear width

D1Exterior entry · Exterior → Family living3′-0″

D2Surface-sliding bath door · Bedroom vestibule → Bath 22′-5″

D3Interior hinged · Bedroom vestibule → Bedroom 22′-8″

D4Interior hinged · Bedroom vestibule → Bedroom 32′-8″

D5Interior hinged · Bedroom vestibule → Bedroom 42′-8″

D6Surface-sliding bath door · Primary bedroom → Primary bath2′-8″

D7Interior hinged · Primary bedroom → Dressing / wardrobe2′-5″

D8Interior hinged · Primary bedroom → Primary hall2′-8″

D9Surface-sliding bath door · Primary hall → Powder room2′-5″

Open circulation

TagConnectsWidth

O1Cased opening · Kitchen / dining → Bedroom vestibule4′-0″

O2Cased opening · Primary hall → Family living3′-6″

O3Cased opening · Family living → Kitchen / dining4′-0″

Window schedule

TagType / roomWidth

W1Proposed sleeping-room window · egress subject to final specification · Primary bedroom · north4′-0″

W2Operable daylight · Family living · south5′-0″

W3Operable daylight · Kitchen / dining · north5′-0″

W4Proposed sleeping-room window · egress subject to final specification · Bedroom 2 · east4′-0″

W5Proposed sleeping-room window · egress subject to final specification · Bedroom 3 · east4′-0″

W6Proposed sleeping-room window · egress subject to final specification · Bedroom 4 · south4′-0″

W7Privacy awning · Primary bath · north2′-6″

W8Privacy awning · Bath 2 · north2′-6″

Diagrammatic furniture + fixture reference

TagItem / roomW × D

F1Queen bed · Primary bedroom5′-0″ × 6′-8″

F2Wardrobe · Primary bedroom4′-0″ × 2′-0″

F3Shower · Primary bath3′-0″ × 3′-0″

F4Toilet · Primary bath1′-5″ × 2′-2″

F5Lavatory vanity · Primary bath3′-0″ × 1′-7″

F6Wardrobe run · Dressing / wardrobe3′-10″ × 2′-0″

F7Toilet · Powder room1′-5″ × 2′-2″

F8Lavatory vanity · Powder room3′-0″ × 1′-7″

F9Three-seat sofa · Family living7′-0″ × 3′-0″

F10Prep counter · Kitchen / dining2′-6″ × 2′-0″

F11Kitchen sink base · Kitchen / dining2′-6″ × 2′-0″

F12Range / cooktop · Kitchen / dining2′-6″ × 2′-2″

F13Apartment-size refrigerator · Kitchen / dining2′-1″ × 2′-2″

F14Dining table for two · Kitchen / dining3′-0″ × 3′-0″

F15Tub / shower · Bath 25′-0″ × 3′-0″

F16Toilet · Bath 21′-5″ × 2′-2″

F17Lavatory vanity · Bath 23′-0″ × 1′-7″

F18Queen bed · Bedroom 26′-8″ × 5′-0″

F19Wardrobe · Bedroom 24′-0″ × 2′-0″

F20Queen bed · Bedroom 36′-8″ × 5′-0″

F21Wardrobe · Bedroom 34′-0″ × 2′-0″

F22Queen bed · Bedroom 46′-8″ × 5′-0″

F23Wardrobe · Bedroom 44′-0″ × 2′-0″

Dimensions are reference footprints only. Confirm actual products, operating space, circulation and code clearances before ordering.

Specification

What the concept includes.

Structure: Factory-built wood modules on engineered foundation
Envelope: 2×6 insulated walls; raised-heel insulated roof trusses
Exterior: Mixed lap/board-and-batten siding; metal porch roof
Systems: Ducted variable-speed heat pump; utility-room services
Interior: Drywall, upgraded LVP and plywood-box cabinetry

Start a conversation

Ask about Grandview 1680.

Since 2004, we’ve helped customers explore homes and financing from our home base in Grapevine, Texas. Share your location, intended use and timing, and we’ll help confirm a realistic next step.
